ch 3.

Immutable Data Operation

with Optics

return to Outline

References

Immutability

  • Deterministic ➡️ same input, same output
  • Pure Function ➡️ work over immutable data
  • Easier to test
  • Easier to trace
  • Thread safety

Data Class

copy

data class Employee(val name: String, val id: String)

fun main() {
    val employeeJack = Employee(name = "Jack", id = "1")
    val employeeAnotherJack = employeeJack.copy(id = "2") // return a new instance instead of modifying it

    println("$employeeJack")  // Employee(name=Jack, id=1)
    println("$employeeAnotherJack")  // Employee(name=Jack, id=2)
}

Nested Data Class

Deep copy

data class Street(val number: Int, val name: String)
data class Address(val city: String, val street: Street)
data class Company(val name: String, val address: Address)
data class Employee(val name: String, val company: Company)

fun Employee.updateStreetName(newStreetName: String): Employee =
    this.copy(
        company = this.company.copy(
            address = this.company.address.copy(
                street = this.company.address.street.copy(
                    name = newStreetName
                )
            )
        )
    )

fun main() {
    val john = Employee("John Doe", Company("Arrow", Address("Functional city", Street(23, "lambda street"))))
    val johnInAlphaStreet = john.updateStreetName("alpha street")
    println("$johnInAlphaStreet")
    // Employee(name=John Doe, company=Company(name=Arrow, address=Address(city=Functional city, street=Street(number=23, name=alpha street))))
}

🔍 with Optics

import arrow.optics.optics

@optics data class Street(val number: Int, val name: String) { companion object }
@optics data class Address(val city: String, val street: Street) { companion object }
@optics data class Company(val name: String, val address: Address) { companion object }
@optics data class Employee(val name: String, val company: Company) { companion object }

fun Employee.updateStreetName(newStreetName: String): Employee =
    Employee.company.address.street.name.set(this, newStreetName)

fun main() {
    val john = Employee("John Doe", Company("Arrow", Address("Functional city", Street(23, "lambda street"))))
    val johnInAlphaStreet = john.updateStreetName("alpha street")
    println("$johnInAlphaStreet")
    // Employee(name=John Doe, company=Company(name=Arrow, address=Address(city=Functional city, street=Street(number=23, name=alpha street))))
}

Copy Sealed Class

  • There is NO copy method for sealed class
sealed class ContactInformation {
    data class Email(val value: String) : ContactInformation()
    data class HomeAddress(val street: String) : ContactInformation()
    object Pigeon : ContactInformation()
    sealed class Phone : ContactInformation() {
        data class MobilePhone(val number: String) : Phone()
        data class OfficePhone(val number: String) : Phone()
        data class HomePhone(val number: String) : Phone()
    }
}

data class UserProfile(val name: String, val contact: ContactInformation)

fun main() {
    val joe = UserProfile(name = "Joe", contact = ContactInformation.Phone.MobilePhone("123456789"))
    val joeWithNewPhone = joe.copy(contact = joe.contact.copy(ContactInformation.Phone.MobilePhone("987654321")))
    // Unresolved reference: copy
}

…or need to do something horrible

fun main() {
    val joe = UserProfile(name = "Joe", contact = ContactInformation.Phone.MobilePhone("123456789"))

    val newPhone = when (joe.contact) {
        is ContactInformation.Email -> joe.contact
        is ContactInformation.Phone.MobilePhone -> ContactInformation.Phone.MobilePhone("987654321")
        is ContactInformation.Phone.OfficePhone -> ContactInformation.Phone.MobilePhone("987654321")
        is ContactInformation.Phone.HomePhone -> ContactInformation.Phone.MobilePhone("987654321")
        is ContactInformation.HomeAddress -> joe.contact
        is ContactInformation.Pigeon -> joe.contact
    }
    val joeWithNewPhone = joe.copy(contact = newPhone)
    println(joeWithNewPhone) // UserProfile(name=Joe, contact=MobilePhone(number=987654321))
}

🔍 with Optics

import arrow.optics.optics

@optics
sealed class ContactInformation {
    companion object {}

    data class Email(val value: String) : ContactInformation()
    data class HomeAddress(val street: String) : ContactInformation()
    object Pigeon : ContactInformation()

    @optics
    sealed class Phone : ContactInformation() {
        companion object {}

        @optics data class MobilePhone(val number: String) : Phone() { companion object }
        @optics data class OfficePhone(val number: String) : Phone() { companion object }
        @optics data class HomePhone(val number: String) : Phone() { companion object }
    }
}

@optics
data class UserProfile(val name: String, val contact: ContactInformation) { companion object }

fun main() {
    val joe = UserProfile(name = "Joe", contact = ContactInformation.Phone.MobilePhone("123456789"))
    val joeWithNewPhone = UserProfile.contact.set(joe, ContactInformation.Phone.MobilePhone("987654321"))
    println(joeWithNewPhone) // UserProfile(name=Joe, contact=MobilePhone(number=987654321))
}

Optics

  • provided by Arrow-kt
  • DSL (Domain-Specific Language)
    • ➡️ improve ease of use and readability
  • Generated at compile time
  • Direct and reusable syntax to read / modify immutable data structures
    • ➡️ “modify” means copy and return a new instance

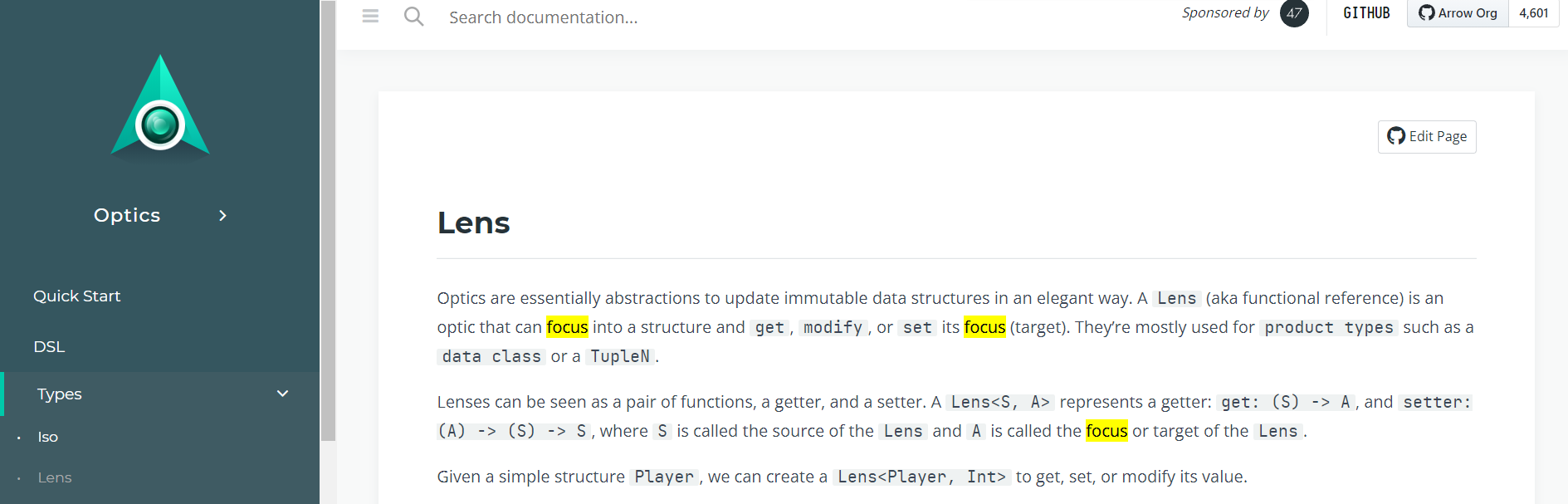

Arrow Optics

https://arrow-kt.io/docs/optics/

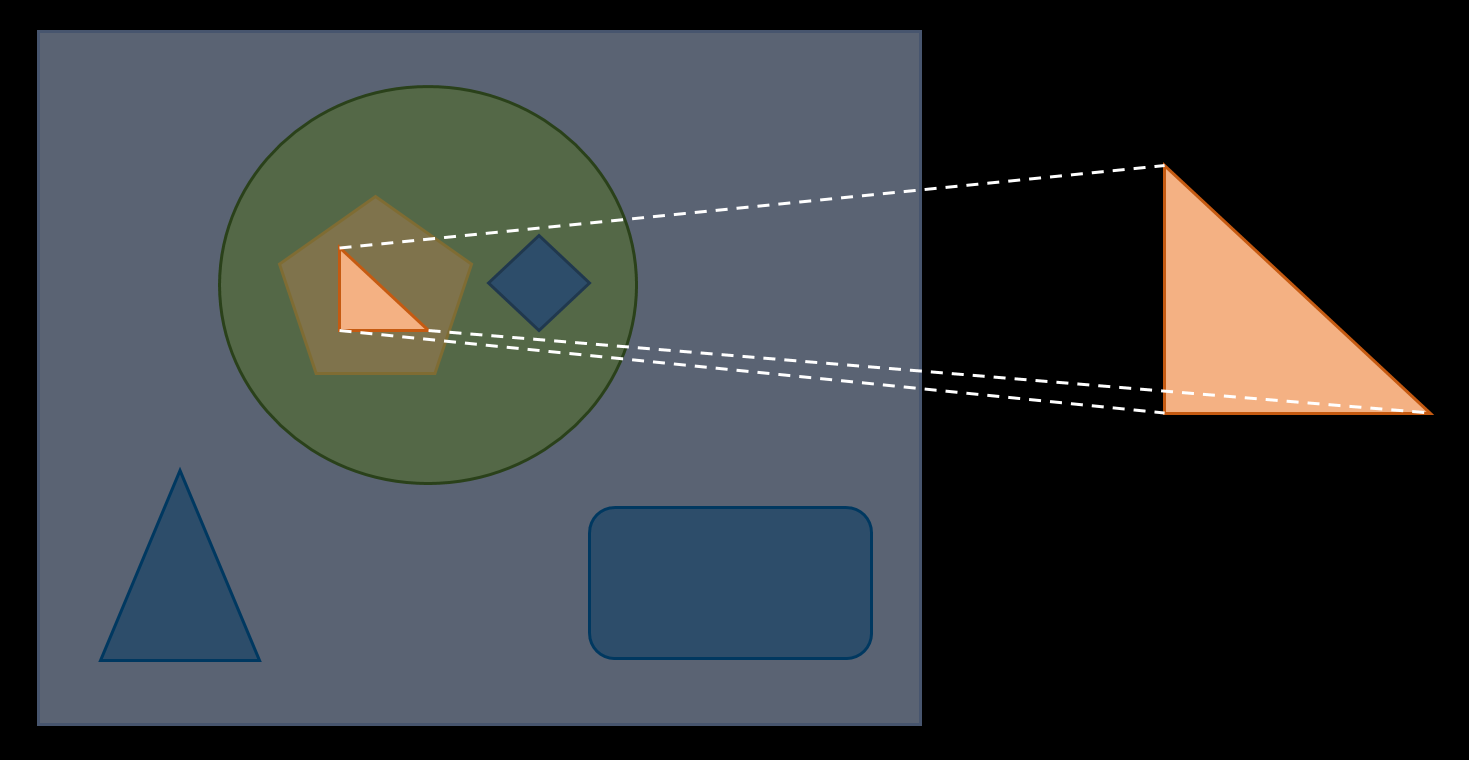

🔍 Focus means the target object

Optics

  • Lens
  • Prism
  • Optional
  • Traversal
  • Every
  • Iso

Lens

  • Functional reference
  • Focus into a structure and operate its focus
    • get ➡️ get the focus
    • set ➡️ set the focus to input value
    • modify ➡️ update the focus with input function
import arrow.optics.Lens

data class UserProfile(val name: String)

val userProfileLens: Lens<UserProfile, String> = Lens(
    get = { userProfile -> userProfile.name },
    set = { userProfile, value -> userProfile.copy(name = value) }
)

fun main() {
    val joe = UserProfile("Joe")

    println(userProfileLens.get(joe)) // Joe
    println(userProfileLens.set(joe, "Jack")) // UserProfile(name=Jack)
    println(userProfileLens.modify(joe) { it.lowercase() }) // UserProfile(name=joe)
}

Prism

  • See into a structure and optionally find its focus
    • getOrModify ➡️ match the focus
    • reverseGet ➡️ get back to the source domain from the focus
  • Mostly used for structures that have a relationship only under a certain condition
    • ➡️ Copy method for sealed class !
import arrow.core.left
import arrow.core.right
import arrow.optics.Prism

sealed class ContactInformation {
    data class Email(val value: String) : ContactInformation()
    object Pigeon : ContactInformation()
}

val contactInformationPrism: Prism<ContactInformation, ContactInformation.Email> = Prism(
    getOrModify = { contactInformation ->
        when (contactInformation) {
            is ContactInformation.Email -> contactInformation.right()
            else -> contactInformation.left()
        }
    },
    reverseGet = { contactInformation -> contactInformation } // (::identity)
)

fun main() {
    val contactInformation = ContactInformation.Email("joe@mail.com")

    val newContactInformation = contactInformationPrism.modify(contactInformation) { email ->
        email.copy(value = "newJoe@mail.com")
    }
    println(newContactInformation) // Email(value=newJoe@mail.com)

    println(contactInformationPrism.getOrModify(ContactInformation.Pigeon)) // Either.Left(playground.ContactInformation$Pigeon@6537cf78)
    println(contactInformationPrism.getOrModify(ContactInformation.Email("jack@mail.com"))) // Either.Right(Email(value=jack@mail.com))
    println(contactInformationPrism.reverseGet(ContactInformation.Email("joe@mail.com"))) // Email(value=joe@mail.com)
}

How does reverseGet work ?

import arrow.core.compose
import arrow.core.left
import arrow.core.right
import arrow.optics.Prism

sealed class ContactInformation {
    data class Email(val value: String) : ContactInformation()
    object Pigeon : ContactInformation()
}

fun ContactInformation.Email.upperEmail(): String = this.value.uppercase()

val contactInformationPrism: Prism<ContactInformation, ContactInformation.Email> = Prism(
    getOrModify = { contactInformation ->
        when (contactInformation) {
            is ContactInformation.Email -> contactInformation.right()
            else -> contactInformation.left()
        }
    },
    reverseGet = ContactInformation::Email compose ContactInformation.Email::upperEmail // (Email) -> (String) -> Email
)

fun main() {
    val contactInformation = ContactInformation.Email("joe@mail.com")

    val newContactInformation = contactInformationPrism.modify(contactInformation) { email ->
        email.copy(value = "newJoe@mail.com")
    }
    println(newContactInformation) // Email(value=NEWJOE@MAIL.COM)
    // Note the email value is uppercase!
    // 1. modify(source: S, map: (A) -> B): T
    // 2. reverseGet(focus: B): T
    // chain 1. and 2., we get (A) -> (B) -> T, that's why the email value is uppercase

    println(contactInformationPrism.getOrModify(ContactInformation.Pigeon)) // Either.Left(playground.ContactInformation$Pigeon@b97c004)
    println(contactInformationPrism.getOrModify(ContactInformation.Email("jack@mail.com"))) // Either.Right(Email(value=jack@mail.com))
    println(contactInformationPrism.reverseGet(ContactInformation.Email("joe@mail.com"))) // Email(value=JOE@MAIL.COM)
}

Optional

  • Allow seeing into a structure and getting, setting, or modifying an optional focus
    • Lens ➡️ getting, setting, or modifying
    • Prism ➡️ an optional focus

🔍 Optional is composed of Lens and Prism

//    val emailUpdated = when(contactInformation) {
//        is ContactInformation.Email -> contactInformation.copy(value = "jack@mail.com")
//        else -> contactInformation
//    }

    val emailOptional: Optional<ContactInformation, String> =
        ContactInformation.email compose ContactInformation.Email.value

    val emailOptional2: Optional<ContactInformation, String> =
        ContactInformation.email.value

import arrow.optics.Optional
import arrow.optics.optics

@optics
sealed class ContactInformation {
    companion object {}

    @optics data class Email(val value: String) : ContactInformation() { companion object }
    object Pigeon : ContactInformation()
}

fun main() {
    val contactInformation = ContactInformation.Email("joe@mail.com")

    val emailUpdated = when(contactInformation) {
        is ContactInformation.Email -> contactInformation.copy(value = "jack@mail.com")
        else -> contactInformation
    }

    val emailOptional: Optional<ContactInformation, String> =
        ContactInformation.email compose ContactInformation.Email.value

    val emailOptional2: Optional<ContactInformation, String> =
        ContactInformation.email.value

    println(emailUpdated) // Email(value=jack@mail.com)

    println(emailOptional.set(contactInformation, "jack@mail.com")) // Email(value=jack@mail.com)
    println(emailOptional.getOrModify(ContactInformation.Pigeon)) // Either.Left(playground.ContactInformation$Pigeon@5ae9a829)
    println(emailOptional.getOrModify(ContactInformation.Email("jack@mail.com"))) // Either.Right(jack@mail.com)

    println(emailOptional2.set(contactInformation, "jack@mail.com")) // Email(value=jack@mail.com)
    println(emailOptional2.getOrModify(ContactInformation.Pigeon)) // Either.Left(playground.ContactInformation$Pigeon@5ae9a829)
    println(emailOptional2.getOrModify(ContactInformation.Email("jack@mail.com"))) // Either.Right(jack@mail.com)
}

Traversal

  • See into a structure and set, or modify 0 to N foci
  • Focus into a structure that has 0 to N elements
    • such as collections etc.
import arrow.optics.Traversal

fun main() {
    val users = listOf("Joe", "Jack", "Mark", "Sam")
    val traversalString = Traversal.list<String>()

    val upperUsers = traversalString.modify(users) { it.uppercase() }
    println(upperUsers) // [JOE, JACK, MARK, SAM]
}

Composed by Lens

import arrow.optics.Traversal
import arrow.optics.optics

@optics data class Street(val number: Int, val name: String) { companion object }
@optics data class Address(val city: String, val street: Street) { companion object }
@optics data class Company(val name: String, val address: Address) { companion object }
@optics data class Employee(val name: String, val company: Company) { companion object }
@optics data class Employees(val employees: List<Employee>) { companion object }


fun main() {
    val employees = Employees(
        listOf(
            Employee("John", Company("Arrow", Address("Functional city", Street(23, "lambda street")))),
            Employee("Jane", Company("Arrow", Address("Functional city", Street(23, "lambda street")))),
            Employee("Mark", Company("Arrow", Address("Functional city", Street(23, "lambda street")))),
            Employee("Sam", Company("Arrow", Address("Functional city", Street(23, "lambda street"))))
        )
    )

    val employeeStreetName =
        Employees.employees compose // (Employees) -> List<Employee>
           Traversal.list() compose // (List<Employee>) -> Employee
           Employee.company compose // (Employee) -> Company
            Company.address compose // (Company) -> Address
             Address.street compose // (Address) -> Street
                Street.name         // (Street) -> String

    println(employeeStreetName.set(employees, "alpha street"))
    // Employees(employees=[
    //  Employee(name=John, company=Company(name=Arrow, address=Address(city=Functional city, street=Street(number=23, name=alpha street)))),
    //  Employee(name=Jane, company=Company(name=Arrow, address=Address(city=Functional city, street=Street(number=23, name=alpha street)))),
    //  Employee(name=Mark, company=Company(name=Arrow, address=Address(city=Functional city, street=Street(number=23, name=alpha street)))),
    //  Employee(name=Sam, company=Company(name=Arrow, address=Address(city=Functional city, street=Street(number=23, name=alpha street))))
    // ])
}

Every

  • See into a structure and set, or modify 0 to N foci
  • Focus into a structure that has 0 to N elements
    • such as collections etc.
  • Match over elements on a collection

Composed by Lens and Prism

import arrow.optics.Every
import arrow.optics.optics

@optics
sealed class ContactInformation {
    companion object {}

    @optics data class Email(val value: String) : ContactInformation() { companion object }
    @optics data class HomeAddress(val street: String) : ContactInformation() { companion object }
    object Pigeon : ContactInformation()

    @optics
    sealed class Phone : ContactInformation() {
        companion object {}

        @optics data class MobilePhone(val number: String) : Phone() { companion object }
        @optics data class OfficePhone(val number: String) : Phone() { companion object }
        @optics data class HomePhone(val number: String) : Phone() { companion object }
    }
}

@optics data class UserProfile(val name: String, val contact: ContactInformation) { companion object }
@optics data class UserProfiles(val userProfiles: List<UserProfile>) { companion object }

fun main() {
    val userProfiles = UserProfiles(
        listOf(
            UserProfile(name = "Joe", contact = ContactInformation.Email(value = "joe@mail.com")),
            UserProfile(name = "Jack", contact = ContactInformation.Pigeon),
            UserProfile(name = "Mark", contact = ContactInformation.HomeAddress(street = "lambda street")),
            UserProfile(name = "Sam", contact = ContactInformation.Phone.MobilePhone(number = "123456789"))
        )
    )

    val userMobilePhoneNumber = UserProfiles.userProfiles compose // (UserProfiles) ->  List<UserProfile>
                                       Every.list() compose // (List<UserProfile>) -> UserProfile
                                UserProfile.contact compose // (UserProfile) -> ContactInformation
                           ContactInformation.phone compose // (ContactInformation) -> Phone
               ContactInformation.Phone.mobilePhone compose // (Phone) -> MobilePhone
        ContactInformation.Phone.MobilePhone.number         // (MobilePhone) -> String

    println(userMobilePhoneNumber.set(userProfiles, "987654321"))
    // UserProfiles(userProfiles=[
    //  UserProfile(name=Joe, contact=Email(value=joe@mail.com)),
    //  UserProfile(name=Jack, contact=playground.ContactInformation$Pigeon@4c70fda8),
    //  UserProfile(name=Mark, contact=HomeAddress(street=lambda street)),
    //  UserProfile(name=Sam, contact=MobilePhone(number=987654321))
    // ])
}

🔍 Leverage DSL

import arrow.optics.Every
import arrow.optics.dsl.every
import arrow.optics.optics

@optics
sealed class ContactInformation {
    companion object {}

    @optics data class Email(val value: String) : ContactInformation() { companion object }
    @optics data class HomeAddress(val street: String) : ContactInformation() { companion object }
    object Pigeon : ContactInformation()

    @optics
    sealed class Phone : ContactInformation() {
        companion object {}

        @optics data class MobilePhone(val number: String) : Phone() { companion object }
        @optics data class OfficePhone(val number: String) : Phone() { companion object }
        @optics data class HomePhone(val number: String) : Phone() { companion object }
    }
}

@optics data class UserProfile(val name: String, val contact: ContactInformation) { companion object }
@optics data class UserProfiles(val userProfiles: List<UserProfile>) { companion object }

fun main() {
    val userProfiles = UserProfiles(
        listOf(
            UserProfile(name = "Joe", contact = ContactInformation.Email(value = "joe@mail.com")),
            UserProfile(name = "Jack", contact = ContactInformation.Pigeon),
            UserProfile(name = "Mark", contact = ContactInformation.HomeAddress(street = "lambda street")),
            UserProfile(name = "Sam", contact = ContactInformation.Phone.MobilePhone(number = "123456789"))
        )
    )

    // Leverage Every DSL
    val userMobilePhoneNumber = UserProfiles.userProfiles.every(Every.list()).contact.phone.mobilePhone.number

    println(userMobilePhoneNumber.set(userProfiles, "987654321"))
    // UserProfiles(userProfiles=[
    //  UserProfile(name=Joe, contact=Email(value=joe@mail.com)),
    //  UserProfile(name=Jack, contact=playground.ContactInformation$Pigeon@4c70fda8),
    //  UserProfile(name=Mark, contact=HomeAddress(street=lambda street)),
    //  UserProfile(name=Sam, contact=MobilePhone(number=987654321))
    // ])
}

Iso

  • Define an isomorphism between a type S and A
    • data class and Pair / Triple / TupleN
  • Invertible optic
import arrow.optics.Iso

data class User(val name: String, val id: String)

fun main() {
    val userIsoPair: Iso<User, Pair<String, String>> = Iso(
        get = { user -> user.name to user.id },
        reverseGet = { (a, b) -> User(a, b) }
    )

    val user = User("Joe", "111")
    println(user) // User(name=Joe, id=111)
    val pairUser = userIsoPair.get(user)
    println(pairUser) // (Joe, 111)
    val reversePairUser = userIsoPair.reverseGet(pairUser)
    println(reversePairUser) // User(name=Joe, id=111)
}

Generated by @optics

import arrow.optics.optics

@optics data class User(val name: String, val id: String) { companion object }

fun main() {
    val user = User("Joe", "111")
    println(user) // User(name=Joe, id=111)
    val pairUser = User.iso.get(user)
    println(pairUser) // (Joe, 111)
    val reversePairUser = User.iso.reverseGet(pairUser)
    println(reversePairUser) // User(name=Joe, id=111)
}

🔍 Compose with other optics

import arrow.optics.Every
import arrow.optics.dsl.every
import arrow.optics.optics

@optics
sealed class ContactInformation {
    companion object {}

    @optics data class Email(val value: String) : ContactInformation() { companion object }
    @optics data class HomeAddress(val street: String) : ContactInformation() { companion object }
    object Pigeon : ContactInformation()

    @optics
    sealed class Phone : ContactInformation() {
        companion object {}

        @optics data class MobilePhone(val model: String, val number: String) : Phone() { companion object }
        @optics data class OfficePhone(val model: String, val number: String) : Phone() { companion object }
        @optics data class HomePhone(val model: String, val number: String) : Phone() { companion object }
    }
}

@optics data class UserProfile(val name: String, val contact: ContactInformation) { companion object }
@optics data class UserProfiles(val userProfiles: List<UserProfile>) { companion object }

fun main() {
    val userProfiles = UserProfiles(
        listOf(
            UserProfile(name = "Joe", contact = ContactInformation.Email(value = "joe@mail.com")),
            UserProfile(name = "Jack", contact = ContactInformation.Pigeon),
            UserProfile(name = "Mark", contact = ContactInformation.HomeAddress(street = "lambda street")),
            UserProfile(name = "Sam", contact = ContactInformation.Phone.MobilePhone(model = "Pixel5", number = "123456789")),
            UserProfile(name = "Tim", contact = ContactInformation.Phone.OfficePhone(model = "SE125", number = "112379")),
            UserProfile(name = "Hank", contact = ContactInformation.Phone.HomePhone(model = "XA950", number = "56431978"))
        )
    )

    val userMobilePhone = UserProfiles.userProfiles
        .every(Every.list())
        .contact
        .phone
        .mobilePhone
        .compose(ContactInformation.Phone.MobilePhone.iso)

    println(userMobilePhone.getAll(userProfiles))
    // [(Pixel5, 123456789)]
    println(userMobilePhone.set(userProfiles, Pair("Sony Xperia", "123456789")))
    // UserProfiles(userProfiles=[
    //  UserProfile(name=Joe, contact=Email(value=joe@mail.com)),
    //  UserProfile(name=Jack, contact=playground.ContactInformation$Pigeon@57fffcd7),
    //  UserProfile(name=Mark, contact=HomeAddress(street=lambda street)),
    //  UserProfile(name=Sam, contact=MobilePhone(model=Sony Xperia, number=123456789)),
    //  UserProfile(name=Tim, contact=OfficePhone(model=SE125, number=112379)),
    //  UserProfile(name=Hank, contact=HomePhone(model=XA950, number=56431978))
    // ])
}

Recap #1

  • Immutability
    • Deep copy in nested data class
    • NO copy method for sealed class
  • @optics
    • Solved above problems
    • DSL for highly composable and reusable
    • Generated at compile time

Recap #2

  • Lens, Prism ➡️ compose to Optional
  • Traversal, Every ➡️ for collections
  • Iso ➡️ isomorphism between data class and TupleN
