ch 6.

Safe Resource Handling

return to Outline

References

• https://kotlin.github.io/kotlinx.coroutines/index.html

What is a resource ?

• Database
• File (IO)
• Connection
• etc.

What is safe handling ?

• Thread safety
• Unchanged data state
• No risk of concurrent modification
• No need of synchronization
• No risk of deadlocks

➡️ leverage Immutability

Immutable Data

• val ➡️ still mutable when it points to a mutable data structure
  • val numbers = mutableListOf(1, 2, 3)
• Immutable collections ➡️ read-only
  • val numbers = listOf(1, 2, 3)
• 3rd party provided data structure for safe-accessed concurrency

3rd Party Libraries

• Arrow-kt
  • Atomic<A> ➡️ Concurrent safe Reference
• Kotlinx
  • Mutex ➡️ Mutual exclusion for coroutines
  • Semaphore ➡️ Counting semaphore for coroutines
  • Channel ➡️ Communication between coroutines
    • similar to BlockingQueue in Java, but with suspending operations

Atomic

• provided by Arrow-kt
• In other languages also known as Ref, IORef
  • ➡️ suspend
• A wrapper around Kotlinx AtomicFU

import arrow.fx.coroutines.Atomic

suspend fun main() {
    val num = Atomic(15)

    println(num.access()) // Obtains a snapshot of the current value, and a setter for updating it
    val numSetter = num.access().second
    numSetter(20)
    println(num.get()) // 20
    num.set(15)

    println(num.get()) // 15
    println(num.getAndUpdate { it * 2 }) // 15, then update `num` to 15 * 2
    println(num.get()) // 30
    num.update { it * 2 }
    println(num.get()) // 60

    // Create an AtomicRef
    val numLens = num.lens(
        get = { it + 2 },
        set = { _, newValue -> newValue + 3 }
    )
    println(numLens.get()) // 60 + 2 = 62
    numLens.set(15) // 15 + 3 = 18
    println(numLens.get()) // 18 + 2 = 20
}

Working with a resource

• Acquisition
• Using
• Releasing ➡️ always need to do

🔍 Asynchronous & Coroutines

🔍 Dependency Injection

Try / Catch / Finally

• Problems with handling cancel() in coroutines
  • catch captures also CancellationException
  • acquire and release need to be NonCancellable
• Can become messy with segregated error handling

import kotlinx.coroutines.CancellationException
import kotlinx.coroutines.NonCancellable
import kotlinx.coroutines.withContext
import other.model.SuspendFile

suspend fun main() {
    // file open, readContent, and close are suspended ops
    val file = withContext(NonCancellable) { // acquire need to be NonCancellable
        SuspendFile("FP_note.txt").open()
    }
    try {
        println(file.readContent())
    } catch (e: CancellationException) { // catch also CancellationException
        withContext(NonCancellable) { file.close() } // release need to be NonCancellable
    } catch (t: Throwable) {
        withContext(NonCancellable) { file.close() } // release need to be NonCancellable
    }
}

Safe Resource Handling

• bracket & bracketCase
• Resource
• guarantee & guaranteeCase
• onCancel
• CircuitBreaker
• provided by Arrow-kt

Arrow Fx

https://arrow-kt.io/docs/fx/

🔍 Acquire, use, and release resources regardless of how and from where they are used.

🔍 Supports any other Arrow Fx operators

➡️ suspend !

Always release

A resource should be released in 3 cases

• Completion
• Cancellation
• Failure

bracket

Declare acquire, use, and release

suspend fun <A, B> bracket(
  acquire: suspend () -> A,
  use: suspend (A) -> B,
  release: suspend (A) -> Unit
): B

bracketCase

Same as bracket, but release by ExitCase

sealed ExitCase {
  object Completed: ExitCase()
  data class Cancelled(val exception: CancellationException) : ExitCase()
  data class Failure(val failure: Throwable) : ExitCase()
}

suspend fun <A, B> bracketCase(
  acquire: suspend () -> A,
  use: suspend (A) -> B,
  release: suspend (A, ExitCase) -> Unit
): B

Error Handling

• Release if there is an error while using the resource
• bracket and bracketCase will rethrow exceptions
  • ➡️ use Either.catch {}

import arrow.core.Either
import arrow.fx.coroutines.ExitCase
import arrow.fx.coroutines.bracketCase
import other.model.SuspendFile

suspend fun main() {
    val result = Either.catch {
        bracketCase(
            acquire = { SuspendFile("FP_note.txt").open() },
            use = { throw RuntimeException("Boom!") },
            release = { file, exitCase ->
                when(exitCase) {
                    is ExitCase.Completed -> { println("Release with Completed") }
                    is ExitCase.Cancelled -> { println("Release with Cancelled") }
                    is ExitCase.Failure -> { println("Release with Failure") } // will run
                }
                file.close()
            }
        )
    }

    println(result) // Either.Left(java.lang.RuntimeException: Boom!)
}

Cancellation Handling

Release when the coroutine is cancelled

import arrow.fx.coroutines.ExitCase
import arrow.fx.coroutines.bracketCase
import arrow.fx.coroutines.never
import kotlinx.coroutines.async
import kotlinx.coroutines.coroutineScope
import other.model.SuspendFile

suspend fun main() {
    coroutineScope {
        val job = async {
            bracketCase(
                acquire = { SuspendFile("FP_note.txt").open() },
                use = { never<Unit>() },
                release = { file, exitCase ->
                    when(exitCase) {
                        is ExitCase.Completed -> { println("Release with Completed") }
                        is ExitCase.Cancelled -> { println("Release with Cancelled") } // will run
                        is ExitCase.Failure -> { println("Release with Failure") }
                    }
                    file.close()
                }
            )
        }

        job.cancel()
    }

    // File [FP_note.txt] opened
    // Release with Cancelled
    // File [FP_note.txt] closed
}

If you fail or cancel on acquire, then release is not called

➡️ Can’t release something we never acquired

Limitations

bracket and bracketCase tied to decide how to use the resource when we acquire it

➡️ Can we separate acquire and use ?

suspend fun <A, B> bracket(
  acquire: suspend () -> A,
  use: suspend (A) -> B, // this makes it hardly reusable
  release: suspend (A) -> Unit
): B

suspend fun <A, B> bracketCase(
  acquire: suspend () -> A,
  use: suspend (A) -> B, // this makes it hardly reusable
  release: suspend (A, ExitCase) -> Unit
): B

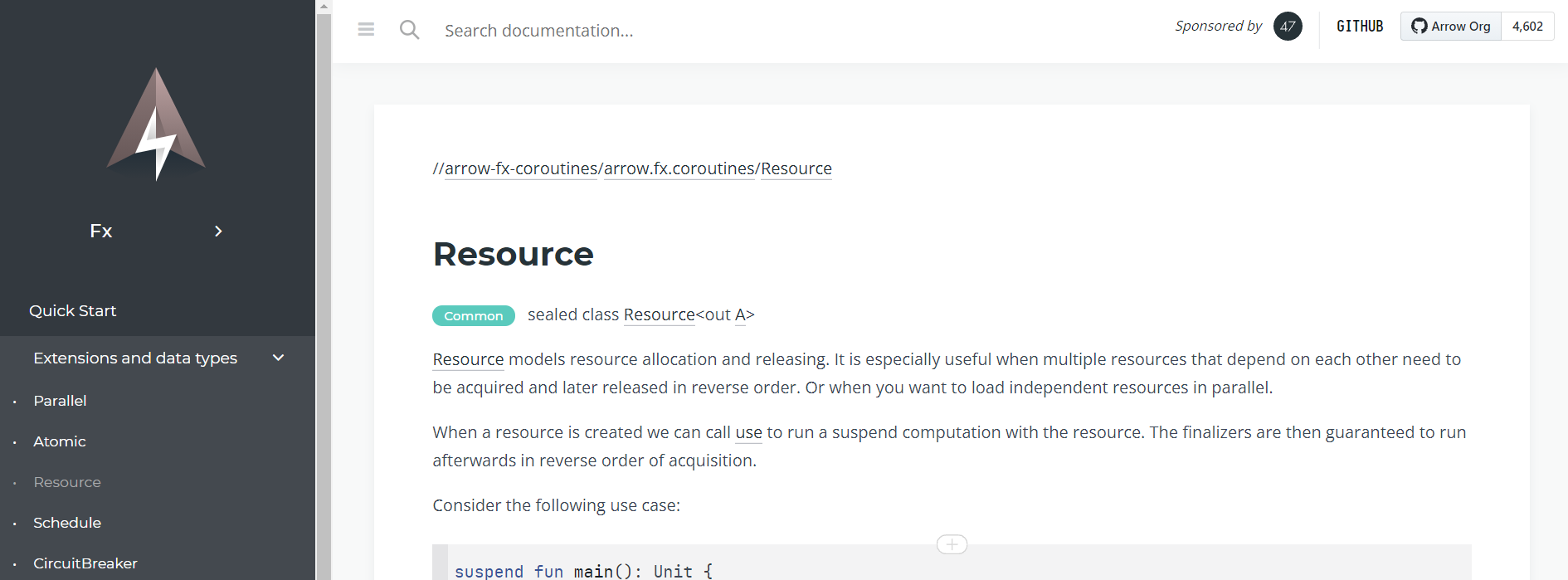

Resource

• Declare acquire and release
• It’s a datatype
  • ➡️ we can pass around or inject and reuse
• Adhere to Monad Laws like Either, Option
  • ➡️ map, flatMap, traverse, …
  • ➡️ compose with other suspend operations

import arrow.fx.coroutines.ExitCase
import arrow.fx.coroutines.Resource
import other.model.SuspendFile

suspend fun main() {
    val resource = Resource(
        acquire = { SuspendFile("FP_note.txt").open() },
        release = { file, exitCase ->
            when(exitCase) {
                is ExitCase.Completed -> { println("Release with Completed") }
                is ExitCase.Cancelled -> { println("Release with Cancelled") }
                is ExitCase.Failure -> { println("Release with Failure") }
            }
            file.close()
        }
    )

    // reuse the Resource
    resource.use { file -> println(file.readContent()) }
    println("---")
    resource.use { file -> println("Just want to print the file name: ${file.fileName}") }

    // File [FP_note.txt] opened
    // The content of [FP_note.txt]
    // Release with Completed
    // File [FP_note.txt] closed
    // ---
    // File [FP_note.txt] opened
    // Just want to print the file name: FP_note.txt
    // Release with Completed
    // File [FP_note.txt] closed
}

⚠️ Can be inefficient to acquire and release every time if we have many operations to perform over the same resource

import arrow.fx.coroutines.ExitCase
import arrow.fx.coroutines.Resource
import other.model.SuspendFile

suspend fun main() {
    val resource = Resource(
        acquire = { SuspendFile("FP_note.txt").open() },
        release = { file, exitCase ->
            when(exitCase) {
                is ExitCase.Completed -> { println("Release with Completed") }
                is ExitCase.Cancelled -> { println("Release with Cancelled") }
                is ExitCase.Failure -> { println("Release with Failure") }
            }
            file.close()
        }
    )

    for (idx in 1..5) {
        // acquire and release every time
        resource.use { file -> println("Use the same Resource($idx/5): ${file.readContent()}") }
        println("---")
    }
}

Solve the Inefficiency

• Fit everything inside the use lambda
• Leverage architecture design
  • ➡️ reuse connection from a pool
• Push the problem into implementation details
  • ➡️ we can still rely on the abstractions

Compose Resource

🔍 Resources guarantee that their release finalizers are always invoked in the correct order when Cancelled and Failure

import arrow.core.Either
import arrow.fx.coroutines.ExitCase
import arrow.fx.coroutines.Resource
import other.model.SuspendFile

suspend fun printExitCaseThenClose(file: SuspendFile, exitCase: ExitCase) {
    when(exitCase) {
        is ExitCase.Completed -> { println("Release with Completed") }
        is ExitCase.Cancelled -> { println("Release with Cancelled") }
        is ExitCase.Failure -> { println("Release with Failure") }
    }
    file.close()
}

suspend fun main() {
    val resources = Resource(
        acquire = { SuspendFile("FP_note.txt").open() },
        release = { file, exitCase -> printExitCaseThenClose(file, exitCase) }
    ).zip(
        Resource(
            acquire = { SuspendFile("Domain Modeling Made Functional.pdf").open() },
            release = { file, exitCase -> printExitCaseThenClose(file, exitCase) }
        ),
        Resource(
            acquire = { SuspendFile("end of a life.mp3").open() },
            release = { file, exitCase -> printExitCaseThenClose(file, exitCase) }
        )
    ) { file1, file2, file3 ->
        println("Zip Resources [${file1.fileName}], [${file2.fileName}], [${file3.fileName}]")
        Triple(file1, file2, file3)
    }

    Either.catch {
        resources.use { files -> throw RuntimeException("Boom!") } // guarantee the release order
    }

    // Release with Failure
    // File [end of a life.mp3] closed
    // Release with Failure
    // File [Domain Modeling Made Functional.pdf] closed
    // Release with Failure
    // File [FP_note.txt] closed
}

If you fail or cancel on acquire, then release is not called

➡️ Can’t release something we never acquired

🔍 acquire & release step are NonCancellable

Error Handling

• Release if there is an error while using the resource
• use will rethrow exceptions
  • ➡️ use Either.catch {}

import arrow.core.Either
import arrow.fx.coroutines.ExitCase
import arrow.fx.coroutines.Resource
import other.model.SuspendFile

suspend fun main() {
    val resource = Resource(
        acquire = { SuspendFile("FP_note.txt").open() },
        release = { file, exitCase ->
            when(exitCase) {
                is ExitCase.Completed -> { println("Release with Completed") }
                is ExitCase.Cancelled -> { println("Release with Cancelled") }
                is ExitCase.Failure -> { println("Release with Failure") } // will run
            }
            file.close()
        }
    )

    val result = Either.catch {
        resource.use { throw RuntimeException("Boom!") }
    }

    // File [FP_note.txt] opened
    // Release with Failure
    // File [FP_note.txt] closed
}

Cancellation Handling

Release when the coroutine is cancelled

import arrow.fx.coroutines.ExitCase
import arrow.fx.coroutines.Resource
import arrow.fx.coroutines.never
import kotlinx.coroutines.async
import kotlinx.coroutines.coroutineScope
import other.model.SuspendFile

suspend fun main() {
    coroutineScope {
        val resource = Resource(
            acquire = { SuspendFile("FP_note.txt").open() },
            release = { file, exitCase ->
                when(exitCase) {
                    is ExitCase.Completed -> { println("Release with Completed") }
                    is ExitCase.Cancelled -> { println("Release with Cancelled") } // will run
                    is ExitCase.Failure -> { println("Release with Failure") }
                }
                file.close()
            }
        )

        val job = async { resource.use { never<Unit>() } }

        job.cancel()
    }

    // File [FP_note.txt] opened
    // Release with Cancelled
    // File [FP_note.txt] closed
}

guarantee

• Guarantee execution of a given finalizer after fa regardless of success, error or cancellation
• Not meant for handling resources but any suspended effects

suspend fun <A> guarantee(
  fa: suspend () -> A,
  finalizer: suspend () -> Unit
): A

guaranteeCase

Same as guarantee, but finalizer with ExitCase

suspend fun <A> guaranteeCase(
  fa: suspend () -> A,
  finalizer: suspend (ExitCase) -> Unit
): A

Error Handling

• Run finalizer if there is an error while running the effect
• guarantee and guaranteeCase will rethrow exceptions after running finalizer
  • ➡️ use Either.catch {}

import arrow.core.Either
import arrow.fx.coroutines.ExitCase
import arrow.fx.coroutines.guaranteeCase

suspend fun main() {
    val result = Either.catch {
        guaranteeCase(
            fa = { throw RuntimeException("Boom!") },
            finalizer = { exitCase ->
                when(exitCase) {
                    is ExitCase.Completed -> { println("Finalizer with Completed") }
                    is ExitCase.Cancelled -> { println("Finalizer with Cancelled") }
                    is ExitCase.Failure -> { println("Finalizer with Failure") } // will run
                }
            }
        )
    }

    println(result) // Either.Left(java.lang.RuntimeException: Boom!)
}

Cancellation Handling

Run finalizer when the coroutine is cancelled

import arrow.fx.coroutines.ExitCase
import arrow.fx.coroutines.guaranteeCase
import arrow.fx.coroutines.never
import kotlinx.coroutines.async
import kotlinx.coroutines.coroutineScope

suspend fun main() {
    coroutineScope {
        val job = async {
            guaranteeCase(
                fa = { never<Unit>() },
                finalizer = { exitCase ->
                    when(exitCase) {
                        is ExitCase.Completed -> { println("Finalizer with Completed") }
                        is ExitCase.Cancelled -> { println("Finalizer with Cancelled") } // will run
                        is ExitCase.Failure -> { println("Finalizer with Failure") }
                    }
                }
            )
        }

        job.cancel()
    }
}

onCancel

Register an onCancel handler after fa

➡️ only be invoked when the coroutine is cancelled

suspend fun <A> onCancel(
  fa: suspend () -> A,
  onCancel: suspend () -> Unit
): A // pass `fa` to `guaranteeCase` and only invoke `onCancel` when `ExitCase.Cancelled`

import arrow.fx.coroutines.never
import arrow.fx.coroutines.onCancel
import kotlinx.coroutines.async
import kotlinx.coroutines.coroutineScope

suspend fun main() {
    coroutineScope {
        val job = async {
            onCancel(
                fa = { never<Unit>() },
                onCancel = { println("Cancelled!") } // will run
            )
        }

        job.cancel()
    }
}

CircuitBreaker

🔍 Detect failures and prevent a failure from constantly recurring

➡️ Protect resources or services from being overloaded

CircuitBreaker has 3 CircuitBreaker.State

• Closed
  • ➡️ normal state
• Open
  • ➡️ short-circuit/fail-fast all requests
• HalfOpen
  • ➡️ while it’s allowing a request to go through, as a test request

Source and Sample Code

import arrow.core.Either
import arrow.fx.coroutines.CircuitBreaker
import kotlinx.coroutines.delay
import kotlin.time.Duration
import kotlin.time.ExperimentalTime

@ExperimentalTime
suspend fun main() {
    val circuitBreaker = CircuitBreaker.of(
        maxFailures = 2,
        resetTimeout = Duration.seconds(2),
        exponentialBackoffFactor = 1.2,
        maxResetTimeout = Duration.seconds(60),
    )
    circuitBreaker.protectOrThrow { "I am in Closed: ${circuitBreaker.state()}" }.also(::println)

    println("Service getting overloaded...")

    // When an exception occurs it increments the failure counter
    // A successful request will reset the failure counter to zero
    Either.catch { circuitBreaker.protectOrThrow { throw RuntimeException("Service overloaded") } }.also(::println)
    Either.catch { circuitBreaker.protectOrThrow { throw RuntimeException("Service overloaded") } }.also(::println)
    println("Reach the maxFailures threshold = 2")
    circuitBreaker.protectEither { }.also { println("I am Open and short-circuit with ${it}. ${circuitBreaker.state()}") }

    println("Service recovering...").also { delay(2000) }

    println("After 2 seconds resetTimeout passed, allowing one request to go through as a test")
    circuitBreaker.protectOrThrow { "I am running test-request in HalfOpen: ${circuitBreaker.state()}" }.also(::println)
    println("I am back to normal state closed ${circuitBreaker.state()}")

    // I am in Closed: Closed(failures=0)
    // Service getting overloaded...
    // Either.Left(java.lang.RuntimeException: Service overloaded)
    // Either.Left(java.lang.RuntimeException: Service overloaded)
    // Reach the maxFailures threshold = 2
    // I am Open and short-circuit with Either.Left(arrow.fx.coroutines.CircuitBreaker$ExecutionRejected). CircuitBreaker.State.Open(startedAt=1635710570531, resetTimeoutNanos=2.0E9, expiresAt=1635710572531)
    // Service recovering...
    // After 2 seconds resetTimeout passed, allowing one request to go through as a test
    // I am running test-request in HalfOpen: HalfOpen(resetTimeoutNanos=2.0E9)
    // I am back to normal state closed Closed(failures=0)
}

Recap #1

• Safe Resource Handling leverages Immutability
  • Atomic, Mutex, Semaphore, Channel, …
• Handle Resource
  • bracket & bracketCase ➡️ acquire, use, release
  • Resource ➡️ acquire, release
    • guarantee release in the correct order when Cancelled or Failure

Recap #2

• Handle Effect
  • guarantee & guaranteeCase ➡️ fa, finalizer
  • onCancel ➡️ fa, onCancel
• CircuitBreaker ➡️ Closed, Open, HalfOpen
  • Protect resources or services from being overloaded
