ch 8.

Functional Architecture

return to Outline

References

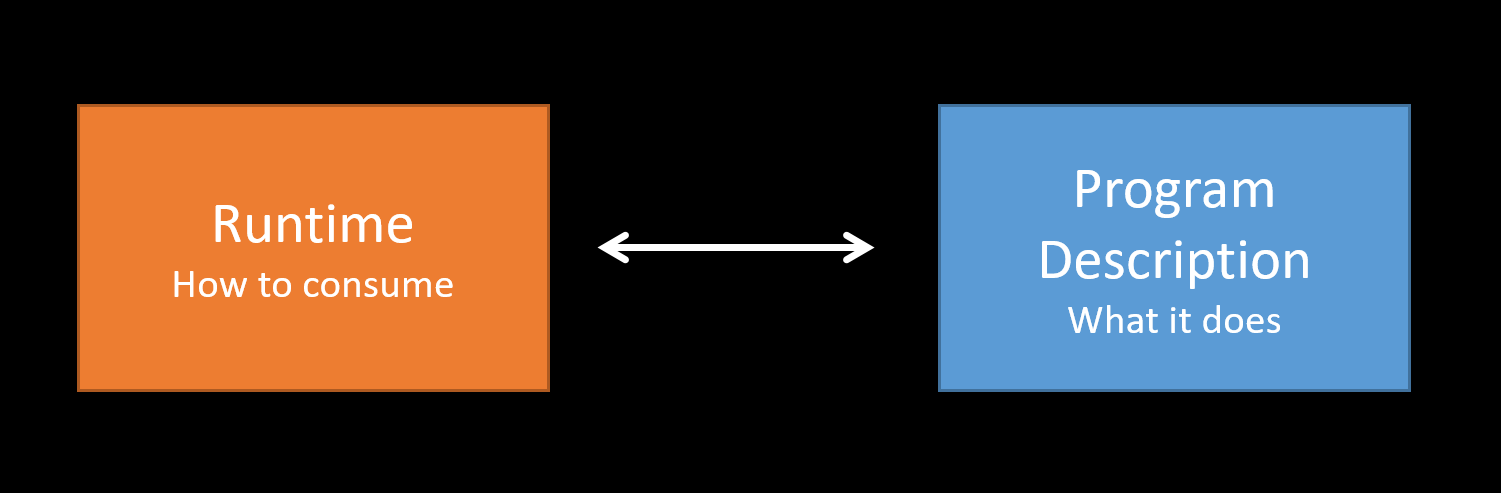

Runtime & Program Logic

Runtime

🔍 interpreter of the program

  • Decide how to consume the program
    • ➡️ pick the execution strategy
  • Provide dependencies to the program
    • ➡️ implementation detail

Program Logic

🔍 agnostic of the runtime

  • Program logic can remain pure and abstract
    • ➡️ lift the function
    • ➡️ suspend
  • Pure edge to edge
    • ➡️ input -> output

How about Side Effect ?

➡️ suspend

  • Lift the function and defer side effects to runtime
    • the entry point requires providing a runtime (Coroutine) to consume
  • Allows keeping side effects tracked by compiler
    • can’t be called from everywhere
  • Pure Architecture
    • push side effects to the edges

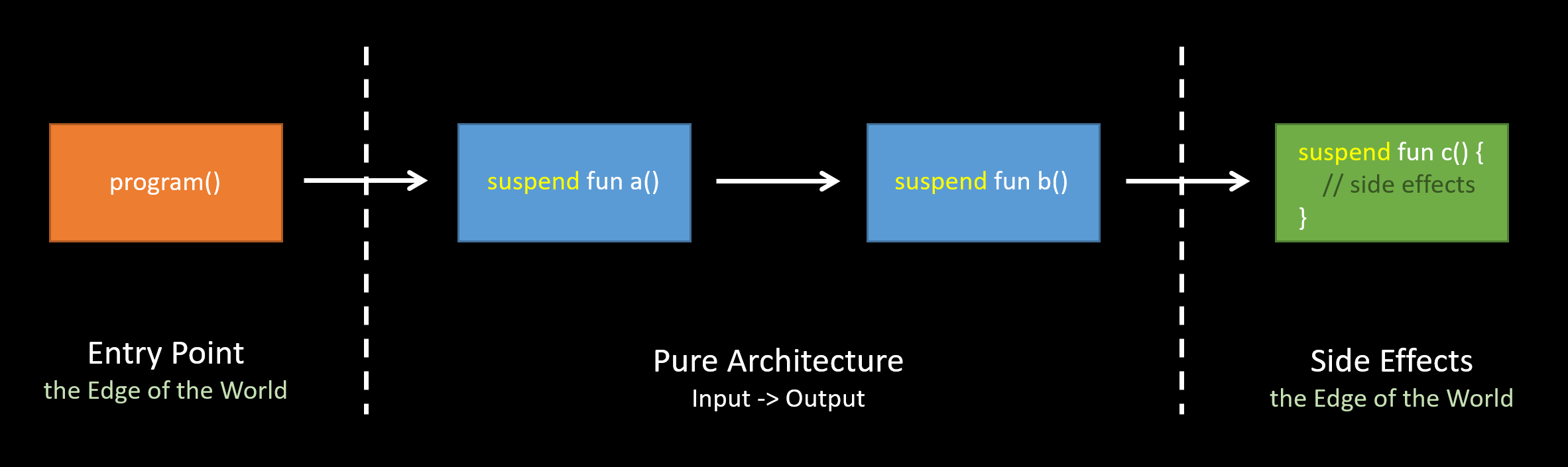

Push Side Effects to the Edges

🔍 Note the side effects are flagged with suspend

Logger in FP

How to do logging in Functional Programming ?

Imperative vs. Declarative

The fundamental dichotomy between imperative and functional (declarative) programming

➡️ statements vs. expressions

Statements vs. Expressions

  • Statements
    • commands to be executed that interact with, and possibly alter, the world
  • Expressions
    • pure computations that are evaluated to yield a result
    • think arithmetic expressions as the canonical example

How is I/O ?

I/O operation is a statement with side effects, and neither composable nor reusable.

  • read/write files
  • interact with database
  • standard input and output
  • logging

About IO Type

In functional programming, there is a IO type

  • let the statement return a value of IO<T>
  • lift the function ➡️ defer side effects
fun loadAuthors(): IO<List<Author>> = IO {
  authorNetworkService.loadAuthors()
}

About IO Type

  • Treat statements as expressions
  • Pure & Reusable

➡️ In Kotlin, that is suspend.

  • Flagging a side effect as suspend effectively makes it pure
  • The value you’re returning is a description of an effect
  • ➡️ not performing the effect itself unless you provide the mentioned environment
suspend fun loadAuthors() =
  authorNetworkService.loadAuthors()

Sample of Logger

Leverage suspend

import arrow.core.Either
import arrow.core.computations.either
import arrow.core.right
import org.apache.commons.logging.LogFactory
import other.model.*

object MyLogger {
    private val logger = LogFactory.getLog(MyLogger::class.java)

    suspend fun <T> info(message: String, data: T): Either<Error, T> =
        Either.catch {
            logger.info(message)
            data
        }.mapLeft { Error.LoggerError }
}

suspend fun main() {
    val fileName = FileName("Note_A")
    val newTag = Tag.TYPE_A
    val updatedFileTag = either<Error, Tag> {
        val file = downloadFile(fileName).bind()
        val updatedFile = updateTag(file, newTag).bind()
        MyLogger.info("My File after updating tag: $file", file).bind()
        val uploadedFile = uploadFile(updatedFile).bind()
        uploadedFile.header.metadata.tag
    }
}

sealed class Error {
    object UploadFileError : Error()
    object FileNotFound : Error()
    object InvalidTag : Error()
    object LoggerError: Error()
}

suspend fun downloadFile(fileName: FileName): Either<Error.FileNotFound, CustomFile> =
    CustomFile(
        header = CustomHeader(CustomMetadata(Tag.TYPE_C, Title("Note A"), Author("Joe"))),
        content = Content("Note A Content"),
        fileFormat = CustomFileFormat.DocumentFile(DocumentFileExtension(".doc")),
        name = FileName("Note_A")
    ).right()

suspend fun updateTag(file: CustomFile, newTag: Tag): Either<Error.InvalidTag, CustomFile> =
    CustomFile.header.metadata.tag.set(file, newTag).right()

suspend fun uploadFile(file: CustomFile): Either<Error.UploadFileError, CustomFile> =
    file.right()

Algebras

  • Pure function as Input -> Output
    • ➡️ algebraic equation
  • Referential Transparency
    • ➡️ compose pure functions
    • ➡️ reduce the program to value
    • ➡️ just like the functions in mathematics

Algebras

  • If a functional program is “pure functions + immutable data”
    • ➡️ deterministic algebraic equations
  • Pure functions ➡️ Operators (operations)
  • Immutable data ➡️ Values (objects)
  • Laws to ensure properties of the algebra
    • Arrow-kt guarantees integrity and correctness

Algebras

🔍 comprised by a set of objects and the operations to work with those

⬇️

  • ADTs + Interpreter
  • Interface

ADTs + Interpreter

Interpreter evaluates the operation and provides implement details

sealed class FileDBOps<out A> {
    data class SaveFile(val file: CustomFile) : FileDBOps<CustomFile>()
    data class RemoveFile(val fileName: FileName) : FileDBOps<FileName>()
    data class FindFileByFileName(val fileName: FileName) : FileDBOps<CustomFile>()
    object FindAll : FileDBOps<List<CustomFile>>()
}

// Evaluates the operation and provides impl details.
suspend fun <A> interpreter(deps: Dependencies, op: FileDBOps<A>): A = when (op) {
    is FileDBOps.SaveFile -> deps.database.insert(op.file)
    is FileDBOps.RemoveFile -> deps.database.delete(op.fileName)
    is FileDBOps.FindFileByFileName -> deps.database.get(op.fileName)
    is FileDBOps.FindAll -> deps.database.loadAll()
} as A

Interface

interface FileDBOps {
    suspend fun saveFile(file: CustomFile): CustomFile
    suspend fun removeFile(fileName: FileName): FileName
    suspend fun findFileByFileName(fileName: FileName): CustomFile
    suspend fun findAll(): List<CustomFile>
}

🤔 How to implement and “pass” to our program ?

Dependency Injection

Why dependency management is a big problem in OOP?

  • The tight coupling of data and code
  • Ubiquitous use of side effects

🤔 Does we really need Dependency Injection

in Functional Programming ?

In functional world,

if you think in terms of inputs and outputs …

➡️ There is no function dependency, only data dependency.

🔍 It’s just a composition of (A) -> B, (B) -> C, etc.

➡️ That’s why FP is easy to test.

With Side Effect

In real world,

we usually need to deal with side effects

  • ➡️ Sometimes need to change implementation
  • ➡️ Still need DI
  • ➡️ But we can do it gracefully, make it testable

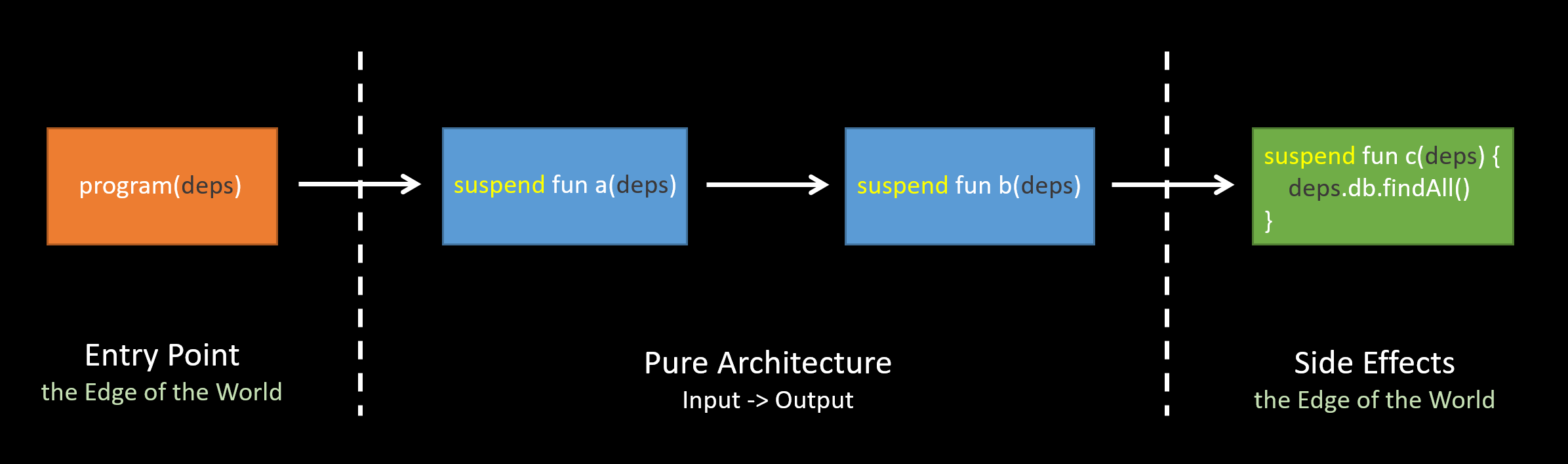

Push Side Effects to the Edges

  • Target abstractions, provide side effects as implementation details
    • Inject the implementation details

Dependency Injection in FP

  • Explicit
    • ➡️ pass dependencies as function arguments
    • ➡️ pollute syntax
  • Implicit
    • ➡️ leverage mechanisms to pass dependencies implicitly
    • ➡️ only initial caller provides them
    • ➡️ access them only where needed

Implicit DI

➡️ via Extension Function

  • Work over a scope
  • The other required scopes are provided by initial caller
  • Can access to all properties of the scope
class Dependencies(
    val authorService: AuthorServiceOps,
    val fileService: FileServiceOps,
    val tagRepository: TagDBOps
) {}

suspend fun Dependencies.findAllTags(): List<Tag> =
    tagRepository.findAll()

suspend fun Dependencies.loadAuthors(): List<Author> =
    authorService.loadAuthors()

suspend fun Dependencies.loadFilesAndUpdateTag(): List<CustomFile> {
    val authors = loadAuthors()
    val files = fileService.findFilesByAuthor(authors)
    val tags = findAllTags()
    return files.map {
        CustomFile.header.metadata.tag.set(it, tags.first())
    }
}

Only pass dependencies on the first call.

suspend fun main() { // Edge of the world
    val deps = Dependencies(AuthorService(), FileService(), TagRepository())
    val files = deps.loadFilesAndUpdateTag()
    println(files)
}

🔍 Extension functions are resolved statically, hence this approach is compile time checked.

import other.model.*

interface AuthorServiceOps {
    suspend fun loadAuthors(): List<Author>
}

interface FileServiceOps {
    suspend fun findFilesByAuthor(fileNames: List<Author>): List<CustomFile>
}

interface TagDBOps {
    suspend fun findAll(): List<Tag>
}

class AuthorService : AuthorServiceOps {
    override suspend fun loadAuthors(): List<Author> =
        listOf(
            Author("Scott Wlaschin"),
            Author("Calliope Mori")
        )
}

class FileService : FileServiceOps {
    override suspend fun findFilesByAuthor(fileNames: List<Author>): List<CustomFile> =
        listOf(
            CustomFile(
                header = CustomHeader(CustomMetadata(Tag.TYPE_C, Title("Domain Modeling Made Functional"), Author("Scott Wlaschin"))),
                content = Content("The useful knowledge of Domain Modeling and design mindset."),
                fileFormat = CustomFileFormat.DocumentFile(DocumentFileExtension(".pdf")),
                name = FileName("Domain Modeling Made Functional")
            ),
            CustomFile(
                header = CustomHeader(CustomMetadata(Tag.TYPE_C, Title("end of a life"), Author("Calliope Mori"))),
                content = Content("A beautiful song."),
                fileFormat = CustomFileFormat.MediaFile.AudioFile(AudioFileExtension(".mp3"), BitRateKBitPerS(320)),
                name = FileName("end of a life")
            )
        )
}

class TagRepository : TagDBOps {
    override suspend fun findAll(): List<Tag> = Tag.values().toList()
}

class Dependencies(
    val authorService: AuthorServiceOps,
    val fileService: FileServiceOps,
    val tagRepository: TagDBOps
) {}

suspend fun Dependencies.findAllTags(): List<Tag> =
    tagRepository.findAll()

suspend fun Dependencies.loadAuthors(): List<Author> =
    authorService.loadAuthors()

suspend fun Dependencies.loadFilesAndUpdateTag(): List<CustomFile> {
    val authors = loadAuthors()
    val files = fileService.findFilesByAuthor(authors)
    val tags = findAllTags()
    return files.map {
        CustomFile.header.metadata.tag.set(it, tags.first())
    }
}

suspend fun main() { // Edge of the world
    val deps = Dependencies(AuthorService(), FileService(), TagRepository())
    val files = deps.loadFilesAndUpdateTag()
    println(files)
}

Implicit DI

Any program with effects can be described as

  1. suspend (Dependencies) -> Result
  2. suspend Dependencies.() -> Result
suspend fun loadAuthors(deps: Dependencies): List<Author> =
    deps.authorService.loadAuthors()

// implicitly pass dependencies
suspend fun Dependencies.loadAuthors(): List<Author> =
    authorService.loadAuthors()

A nice approach

  • pass dependencies implicitly via extension functions
  • leave explicit parameters for the payload of our functions

Further reading - Receiver

A.() -> B

➡️ Used for DSL and…

remember the Scope Function ?

public inline fun <T> T.apply(block: T.() -> Unit): T {
    contract {
        callsInPlace(block, InvocationKind.EXACTLY_ONCE)
    }
    block()
    return this
}

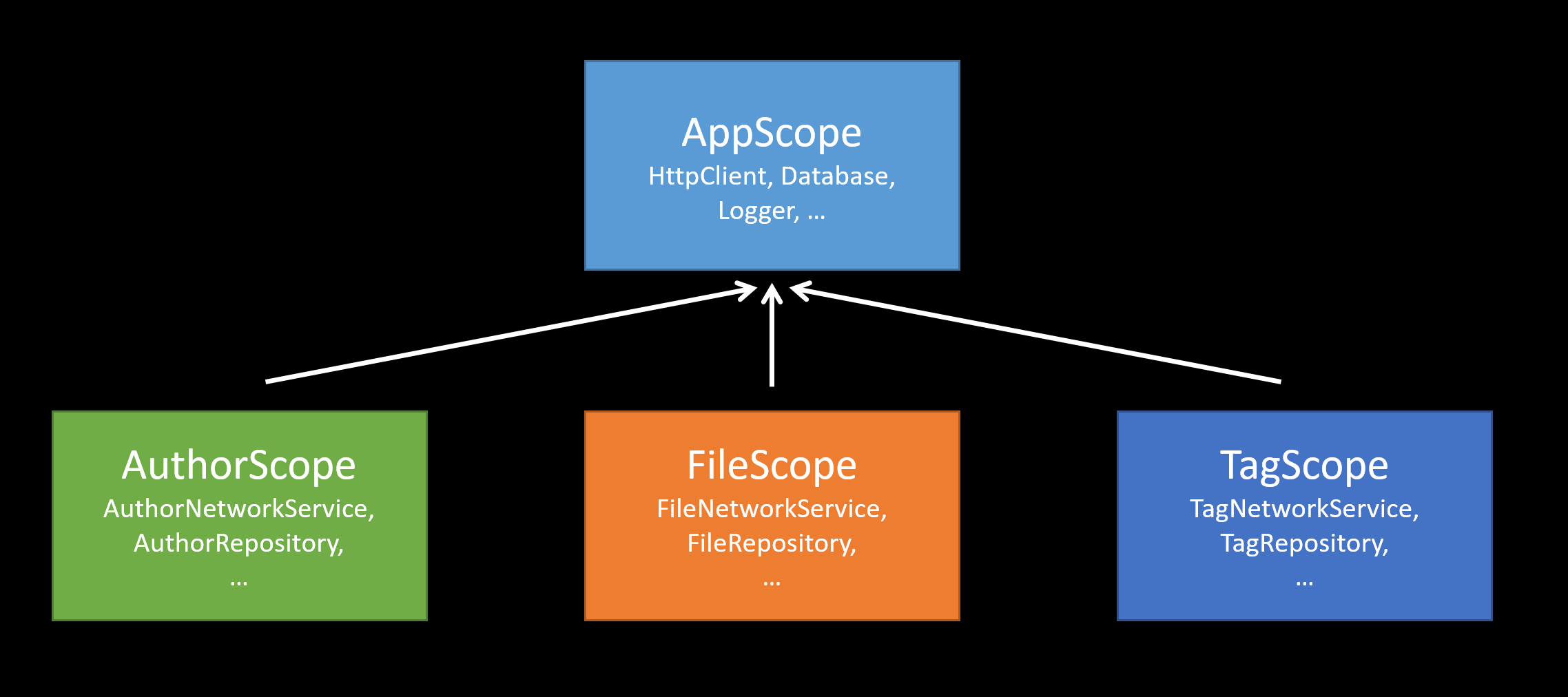

Dependency Scoping

We can segregate scopes and compose in different ways depending on the use cases we need to model.

Dependency Scoping

// An example of an application wide scope for app wide dependencies.
abstract class AppScope {
    val httpClient: HttpClient by lazy { HttpClient() } // lazy initialization
    val database: Database by lazy { Database() }
    val logger: Logger by lazy { Logger() }
}

// Our application class
object Application {
    // Retained as singleton at an application level
    val diScope = object : AppScope() {}
}

// Our service scope
interface AuthorScope {
    private val appScope: AppScope get() = Application.diScope
    val authorNetworkService: AuthorNetworkOps get() = AutherNetworkService(appScope.httpClient) // algebra
    val authorRepository: AuthorDBOps get() = AuthorRepository(appScope.database)// algebra
}

interface FileScope {
    private val appScope: AppScope get() = Application.diScope
    val fileNetworkService: FileNetworkOps get() = FileNetworkService(appScope.httpClient) // algebra
    val fileRepository: FileDBOps get() = FileRepository(appScope.database)// algebra
}

interface TagScope {
    private val appScope: AppScope get() = Application.diScope
    val tagNetworkService: TagNetworkOps get() = TagNetworkService(appScope.httpClient) // algebra
    val tagRepository: TagDBOps get() = TagRepository(appScope.database)// algebra
}

Delegation Pattern

class Rectangle(val width: Int, val height: Int) { // Delegate
    fun area() = width * height
}

class Window(val bounds: Rectangle) { // Delegator
    fun area() = bounds.area() // Delegation
}

fun main() {
    val rectangle = Rectangle(5, 10)
    val window = Window(rectangle)
    println(window.area()) // 5 * 10 = 50
}

Delegation in Kotlin

Delegation with by

interface ClosedShape {
    fun area(): Int
}

class Rectangle(val width: Int, val height: Int) : ClosedShape { // Delegate
    override fun area() = width * height
}

// Delegator
class Window(val bounds: ClosedShape) : ClosedShape by bounds // Delegation

fun main() {
    val rectangle = Rectangle(5, 10)
    val window = Window(rectangle)
    println(window.area()) // 5 * 10 = 50
}

Delegation Properties

lazy ➡️ the value is computed only on first access

  • First call to get()
    • execute the lambda passed to lazy()
    • remember the result
  • Subsequent calls to get()
    • simply return the remembered result

Initialize with lazy

val lazyString: String by lazy {
    println("Initialize my lazyString...")
    "Hello"
}

fun main() {
    println(lazyString) // execute the lambda passed to lazy(), and remember the result
    // Initialize my lazyString...
    // Hello

    println(lazyString) // simply return the remembered result
    // Hello
}

Instance of Abstract Class

abstract class MyAbstractString {
    val myString = "Hello"
}

fun main() {
    val myAbstractString = MyAbstractString() // Error: Cannot create an instance of an abstract class
}

Object of Anonymous Class

abstract class MyAbstractString {
    val myString = "Hello"
}

fun main() {
    val myAbstractString = object : MyAbstractString() {} // object expressions extend `MyAbstractString`
    println(myAbstractString.myString)
}

➡️ Singleton

➡️ Object Expression

Implicit DI

import other.model.*

interface AuthorServiceOps {
    suspend fun loadAuthors(): List<Author>
}

interface FileServiceOps {
    suspend fun findFilesByAuthor(fileNames: List<Author>): List<CustomFile>
}

interface TagDBOps {
    suspend fun findAll(): List<Tag>
}

class AuthorService : AuthorServiceOps {
    override suspend fun loadAuthors(): List<Author> =
        listOf(
            Author("Scott Wlaschin"),
            Author("Calliope Mori")
        )
}

class FileService : FileServiceOps {
    override suspend fun findFilesByAuthor(fileNames: List<Author>): List<CustomFile> =
        listOf(
            CustomFile(
                header = CustomHeader(CustomMetadata(Tag.TYPE_C, Title("Domain Modeling Made Functional"), Author("Scott Wlaschin"))),
                content = Content("The useful knowledge of Domain Modeling and design mindset."),
                fileFormat = CustomFileFormat.DocumentFile(DocumentFileExtension(".pdf")),
                name = FileName("Domain Modeling Made Functional")
            ),
            CustomFile(
                header = CustomHeader(CustomMetadata(Tag.TYPE_C, Title("end of a life"), Author("Calliope Mori"))),
                content = Content("A beautiful song."),
                fileFormat = CustomFileFormat.MediaFile.AudioFile(AudioFileExtension(".mp3"), BitRateKBitPerS(320)),
                name = FileName("end of a life")
            )
        )
}

class TagRepository : TagDBOps {
    override suspend fun findAll(): List<Tag> = Tag.values().toList()
}

abstract class Dependencies {
    val authorService: AuthorServiceOps by lazy { AuthorService() }
    val fileService: FileServiceOps by lazy { FileService() }
    val tagRepository: TagDBOps by lazy { TagRepository() }
}

suspend fun Dependencies.findAllTags(): List<Tag> =
    tagRepository.findAll()

suspend fun Dependencies.loadAuthors(): List<Author> =
    authorService.loadAuthors()

suspend fun Dependencies.loadFilesAndUpdateTag(): List<CustomFile> {
    val authors = loadAuthors()
    val files = fileService.findFilesByAuthor(authors)
    val tags = findAllTags()
    return files.map {
        CustomFile.header.metadata.tag.set(it, tags.first())
    }
}

suspend fun main() { // Edge of the world
    val deps = object : Dependencies() {}
    val files = deps.loadFilesAndUpdateTag()
    println(files)
}

Abstract Class vs. Interface

Basically, an abstract can do what an interface can

➡️ both subclass / implementation need to implement abstract function

🤔 What is the difference?

Abstract Class

can have …

  • constructors
  • an init body
  • properties with given value
abstract class Shape {
    lateinit var color: String

    private val shapeColor: String
        get() = color

    init {
        color = "pink"
    }

    fun defaultColor() {
        println("The shape's default color is $shapeColor.")
    }

    abstract fun side(): Int
    abstract fun computeArea(): Double
    abstract fun computePerimeter(): Double
}

class Rectangle(var l: Int, var w: Int) : Shape() {
    override fun side(): Int = 4
    override fun computeArea(): Double = (w * l).toDouble()
    override fun computePerimeter(): Double = (2 * (l + w)).toDouble()
}

fun main() {
    val rect = Rectangle(2, 3)
    println("Area: ${rect.computeArea()}")
    println("Perimeter: ${rect.computePerimeter()}")
    rect.defaultColor()
}

➡️ Delegation for lazy initialization

abstract class Dependencies {
    val authorService: AuthorServiceOps by lazy { AuthorService() }
    val fileService: FileServiceOps by lazy { FileService() }
    val tagRepository: TagDBOps by lazy { TagRepository() }
}

Interface

You only want to share behavior with the class but not the code between a set of objects

interface Shape {
    fun side(): Int
    fun computeArea(): Double
    fun computePerimeter(): Double
    fun addColor(): String
}

class Rectangle(var l: Int, var w: Int) : Shape {
    override fun side(): Int {
        return 4
    }

    override fun computeArea(): Double {
        return (w * l).toDouble()
    }

    override fun computePerimeter(): Double {
        return (2 * (l + w)).toDouble()
    }

    override fun addColor(): String {
        return "red"
    }
}

fun main() {
    val rect = Rectangle(2, 3)
    println("Area: ${rect.computeArea()}")
    println("Perimeter: ${rect.computePerimeter()}")
    println("Color: ${rect.addColor()}")
}

➡️ Set of operations for algebras

interface FileDBOps {
    suspend fun saveFile(file: CustomFile): CustomFile
    suspend fun removeFile(fileName: FileName): FileName
    suspend fun findFileByFileName(fileName: FileName): CustomFile
    suspend fun findAll(): List<CustomFile>
}

🔍 Program to an interface (or abstract class), not an implementation.

Dependencies in Testing

Recap the Dependency Scoping

// An example of an application wide scope for app wide dependencies.
abstract class AppScope {
    val httpClient: HttpClient by lazy { HttpClient() } // lazy initialization
    val database: Database by lazy { Database() }
    val logger: Logger by lazy { Logger() }
}

// Our application class
object Application {
    // Retained as singleton at an application level
    val diScope = object : AppScope() {}
}

// Our service scope
interface AuthorScope {
    private val appScope: AppScope get() = Application.diScope
    val authorNetworkService: AuthorNetworkOps get() = AutherNetworkService(appScope.httpClient) // algebra
    val authorRepository: AuthorDBOps get() = AuthorRepository(appScope.database)// algebra
}

interface FileScope {
    private val appScope: AppScope get() = Application.diScope
    val fileNetworkService: FileNetworkOps get() = FileNetworkService(appScope.httpClient) // algebra
    val fileRepository: FileDBOps get() = FileRepository(appScope.database)// algebra
}

interface TagScope {
    private val appScope: AppScope get() = Application.diScope
    val tagNetworkService: TagNetworkOps get() = TagNetworkService(appScope.httpClient) // algebra
    val tagRepository: TagDBOps get() = TagRepository(appScope.database)// algebra
}

Define scopes as interfaces or abstract classes for flexibility

➡️ replace implementation in tests

class AuthorService(private val diScope : AuthorScope = object : AuthorScope {}) {
    suspend fun loadAuthors(): List<Author> =
        diScope.authorNetworkService.loadAuthors()
}

With algebras, we can override the dependencies we want to replace only

class AuthorServiceTest {
    private lateinit var authorService: AuthorService

    @Before
    fun setup() {
        authorService = AuthorService(diScope = object : AuthorScope {
            override val authorNetworkService: AuthorNetworkOps = MockAuthorNetworkService()
            override val authorRepository: AuthorDBOps = MockAuthorRepository()
        })
    }

    @Test
    fun testLoadAuthors() = runBlocking {
        val actual = authorService.loadAuthors()
        Assertions.assertEquals(listOf("Joe", "Mark"), actual)
    }
}

➡️ Mock the dependencies and test without touching the real network or database

Alternatively, use Testcontainers!

Implications of FP for testing

  • Purity
    • deterministic, predictable, no side effect
    • ➡️ Remove flakiness
  • Immutability
    • no unexpected state changes
    • ➡️ Test scenarios and assertions remain correct

Implications of FP for testing

  • Functional domain modeling
    • strict data validation (types + compiler)
    • ➡️ Remove the need of tests for invariants
  • And more
    • error handling, ADT, implicit DI
    • ➡️ Testability, Exhaustivity

Recap #1

  • Pure Logic
    • describe what to do
    • push Side Effects to the Edges
    • implement at runtime (how to consume)
    • IO and suspend and logger
  • Algebras
    • ADTs + interpreter
    • interface

Recap #2

  • Dependency Injection
    • via Extension Function
    • pass dependencies implicitly
    • leave explicit arguments for payload
  • Dependency Scoping
    • delegation, object expression
    • program to an interface, not an implementation
    • replace implementation in tests
